Fully Automatic High-Viscosity Cosmetic Powder Pressing Machine
Home / Products / Fully Automatic High-Viscosity Cosmetic Powder Pressing Machine

Fully Automatic High-Viscosity Cosmetic Powder Pressing Machine

The Fully Automatic High-Viscosity Cosmetic Powder Pressing Machine is an automated structural system engineered specifically for the compacting and shaping of high-oil and high-viscosity cosmetic powder formulas, such as mashed potato textures, baked powders, and slurry-based variants. This machinery addresses industrial challenges including mold adherence and deformation often associated with high-viscosity materials, utilizing optimized pressure control and material conveying mechanisms to deliver precise powder compacting.
The system incorporates a complete, streamlined inline production matrix, integrating automatic aluminum pan feeding, automatic material dosing, automatic powder pressing, and automatic finished product collection. Operating with consistent mechanical cycles, the equipment yields a production throughput of 1,000 to 1,400 pieces per hour, replacing multi-stage semi-automatic operations to meet large-scale and continuous manufacturing demands for specialized cosmetic powders.

Product Features & Core Advantages

·Optimized for High-Viscosity and High-Oil Formulas: Engineered around the rheological and physical behavior of mashed potato textures and baked powder formulations. Anti-stick engineering across feeding and pressing units mitigates structural flaking or edge fracturing caused by excessive formula cohesion.
·Inline Process Integration: Consolidates pan feeding, volumetric dosing, pressing, and discharge into a singular closed-loop sequence, minimizing material exposure and transfers while reducing the risks of humidity absorption or secondary contamination.
·Stable Production Throughput: Sustains a mechanical output of 1,000 to 1,400 pieces per hour under continuous running conditions, replacing human error with a highly standardized production cadence.
·Quantifiable Parameter Management: Mechanical pressure, air-venting dwell times, and filling depths are digitally adjustable via the control interface, allowing rapid calibration to match shifting oil-to-powder ratios across product formulas.

Contact Us
PREV：Fully Automatic Aluminum Pan Loading and Feeding MachineNEXT：50L High Shear Powder Mixer Machine with Oil Spraying System For Cosmetic

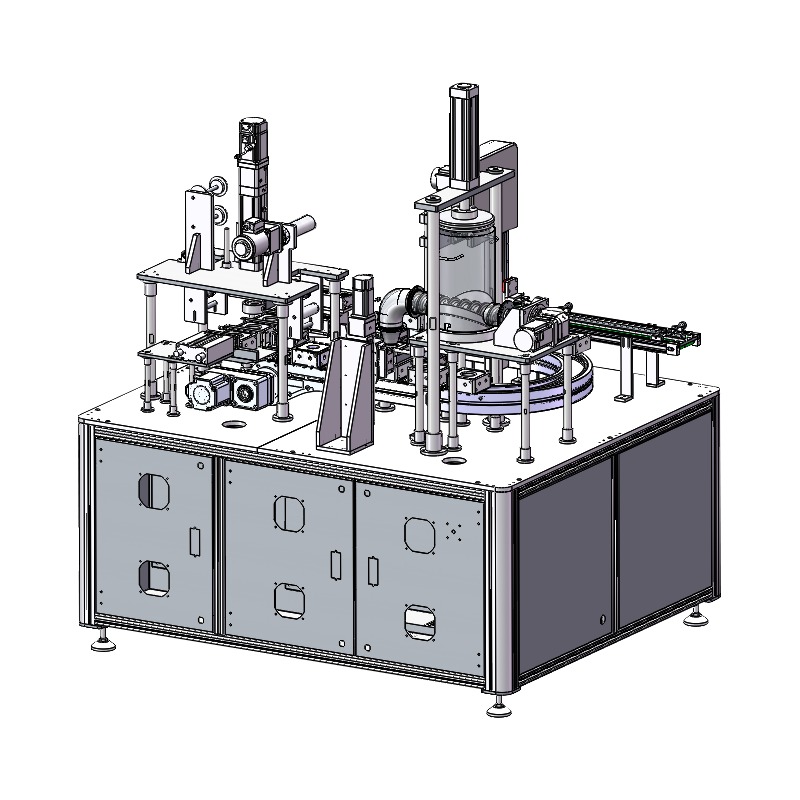

Core Components

The machinery consists of the following industrial-grade modular components, synchronized via a central control loop:
·Vibratory Bowl Feeder Assembly: Performs automated directional alignment and continuous, structured delivery of empty aluminum pans to sustain feeding flow.
·Automatic Aluminum Pan Loading Assembly: Executes automated gripping and precise placement of aluminum pans directly into corresponding cavities along the inline mold track.
·Automatic Material Dosing Assembly: Specifically configured for the quantitative feeding of high-viscosity powders, utilizing a specialized anti-clogging hopper to secure uniform fill weight and composition consistency.
·Automatic Powder Pressing Assembly: The primary force-application module, employing adjustable pressure configurations and stroke control to execute multi-stage or tailored pressing cycles, preventing surface cracking in high-oil matrices.
·Automatic Product Collection Assembly: Smoothly extracts the compacted finished aluminum pans from the pressing zone and systematically aligns them for discharge.
·Main Frame Assembly: Fabricated from a heavy-duty, high-rigidity metal frame that absorbs physical stress during high-force pressing cycles to maintain geometric alignment over long periods of operation.

View More

Application Scenarios

·Mashed Potato Texture Cosmetics Production: Specialized for pressing high-oil, high-viscosity eyeshadows, highlighters, and blushes.
·Baked Powder Pre-Compacting: Utilized for the foundational shaping of wet slurry formulas prior to dehydration or industrial baking oven cycles.
·Cosmetic OEM/ODM Flexible Manufacturing: Enables contract manufacturers to extend their automated production capability into specialized powder classifications, accommodating high-volume brand contract requirements.

Frequently Asked Questions (FAQs)
  • Q: Non-uniform Dosing or Material Adherence Inside the Hopper
    ·Root Cause: Excessive oil content in the raw material or shifting ambient temperature/humidity causing powder aggregation and bridging.
    ·Solutions: Integrate a mechanical bridge-breaking agitation mechanism within the dosing assembly, or apply an anti-stick PTFE coating to the internal surfaces of the hopper; monitor powder raw material storage temperatures.
  • Q: Material Flaking or Sticking to the Press Head Post-Compacting
    ·Root Cause: Inadequate cleanliness of the press head surface, insufficient stepping tension of the pressing fabric, or incorrect calibration between compression force and air venting intervals.
    ·Solutions: Adjust the winding step distance of the fabric assembly to ensure a clean layer of anti-stick fabric for every cycle; implement a multi-stage pressing curve (low-pressure venting followed by high-pressure shaping) and refine dwell-time settings.
  • Q: Misalignment of Aluminum Pans Within the Pressing Zone
    ·Root Cause: Wear on the loading gripper jaws or loosening of the track indexing guides, causing the pan to sit unevenly inside the mold cavity.
    ·Solutions: Recalibrate the operational coordinates of the robotic loader arm, tighten all locking bolts on the guide tracks, and periodically clear residual powder from the bottom of the molds.
  • Q: How long will it take to receive a response after the inquiry?

    We value every inquiry. We will reply within 12 hours after receiving the inquiry.

  • Q: How long will it take for the device to respond and solve the problem?

    After receiving the fault notification from Party A, we can provide a video response within 2 hours to troubleshoot the issue.
