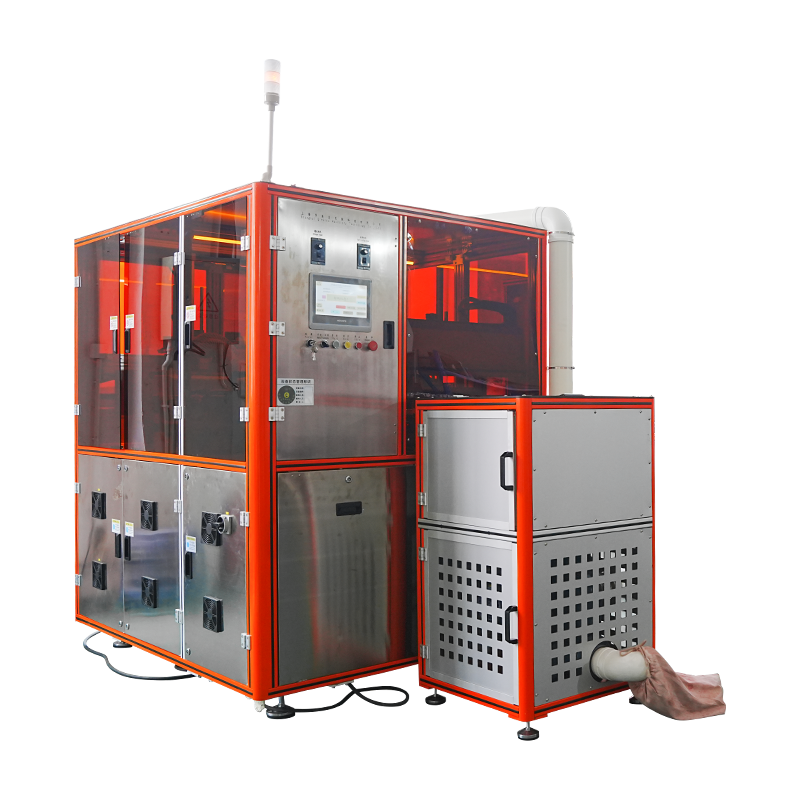

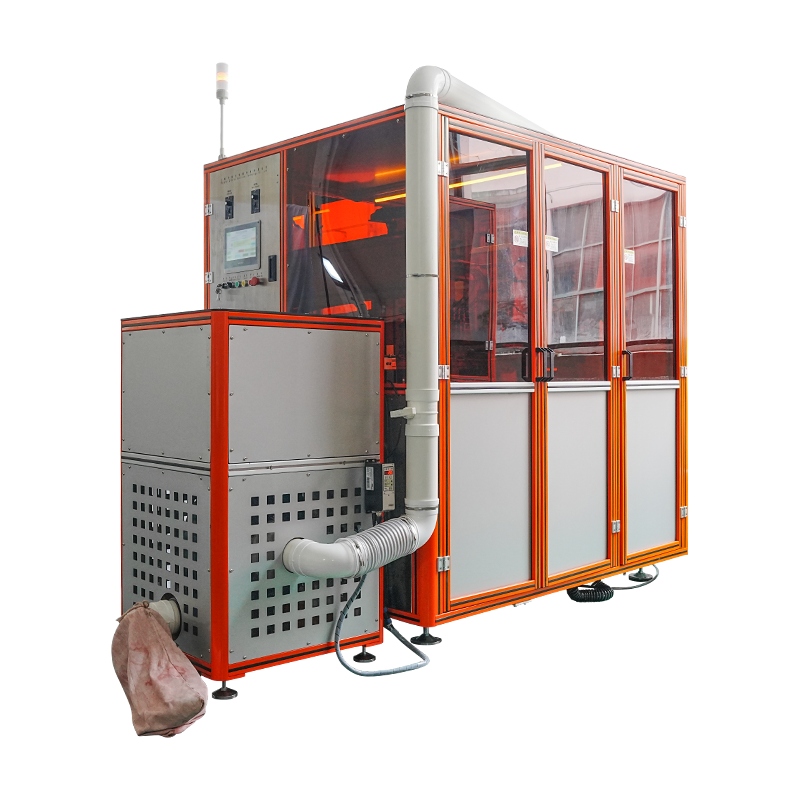

Fully Automatic Cosmetic Powder Pressing Machine
The Fully Automatic Cosmetic Powder Pressing Machine is an automated industrial system engineered for the compacting and shaping of cosmetic powder products, including pressed powders, blushes, and eyeshadows. Equipped with a Human-Machine Interface (HMI) control system, a single operator can manage two units simultaneously. The integrated WiFi module enables remote data monitoring and diagnostics.
This machinery automates the continuous inline production cycle, seamlessly executing automatic aluminum pan loading, automatic material dosing, surface powder clearing, powder pressing, and finished product collection. The mold infrastructure supports up to 49 cavities per mold, operating at a speed of 1 to 2 cycles per minute to support large-scale manufacturing environments.
Product Features & Core Advantages
·High-Density Multi-Cavity Mold: Supports a maximum of 49 cavities per mold. Combined with a production speed of 1 to 2 cycles per minute, it maximizes output per unit time.
·Full-Process Inline Automation: Integrates pan loading, powder filling, surface clearing, pressing, and discharge into a singular continuous production line, reducing manual contact.
·HMI Control & Operational Efficiency: The intuitive Human-Machine Interface simplifies parameter configuration. Due to the synced automation logic, one operator can supervise two machines concurrently, optimizing labor costs.
·WiFi Remote Connectivity: The embedded remote communication module allows engineers to perform remote programming optimizations, data retrieval, and technical diagnostics via the network.
Core Components
The equipment consists of the following standardized modular components, with each unit synchronized via a central PLC system:

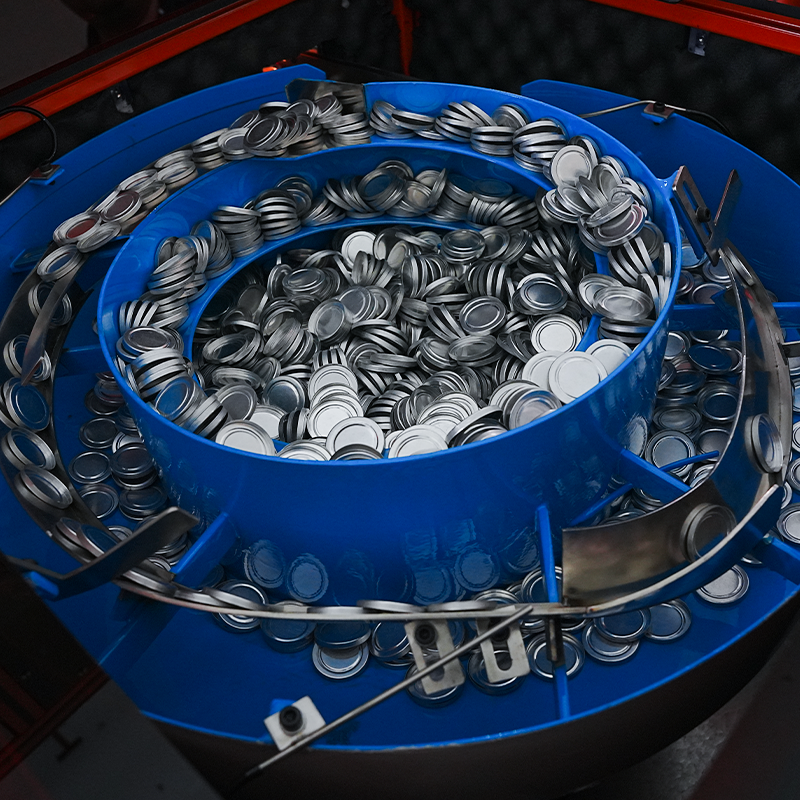

·Vibratory Bowl Feeder Assembly: Responsible for the automated directional alignment and stable conveying of bulk aluminum pans.

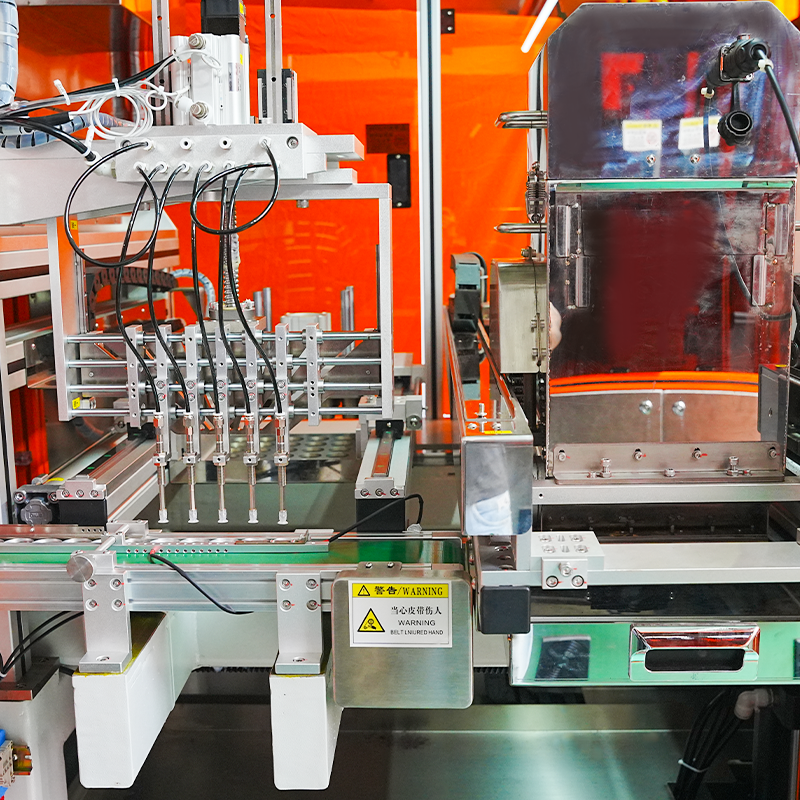

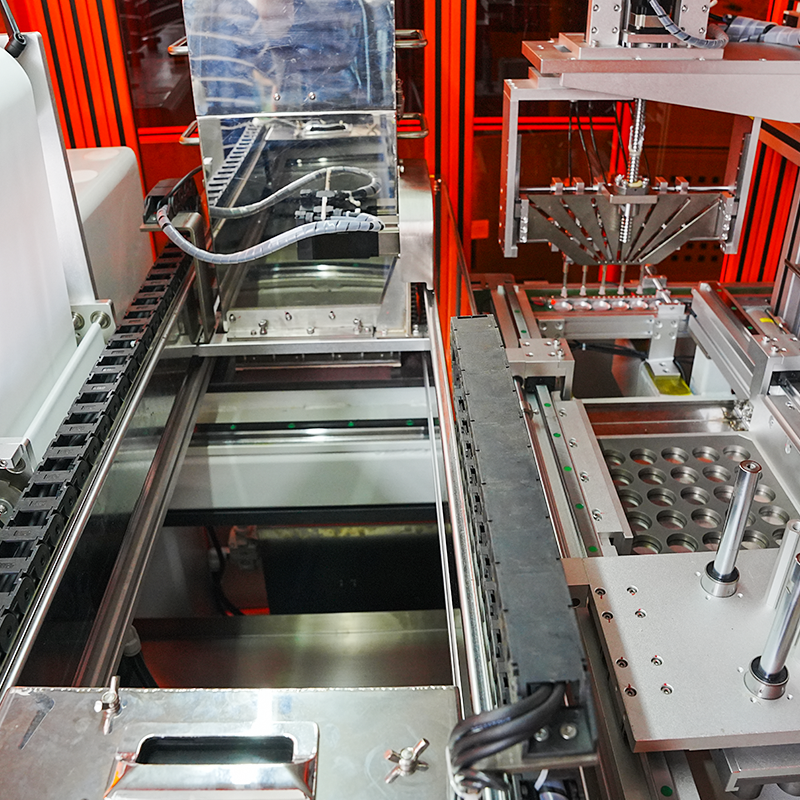

·Automatic Aluminum Pan Loading Assembly: Executes the automated picking, sorting, and precise positioning of empty aluminum pans from the track.
·Powder Filling & Clearing Assembly: Performs quantitative filling of powder materials and removes excess powder from the aluminum pan surface.
·Pre-Pressing Assembly: Conducts initial air venting and pre-compaction of the filled powder to prevent powder splashing during main pressing.

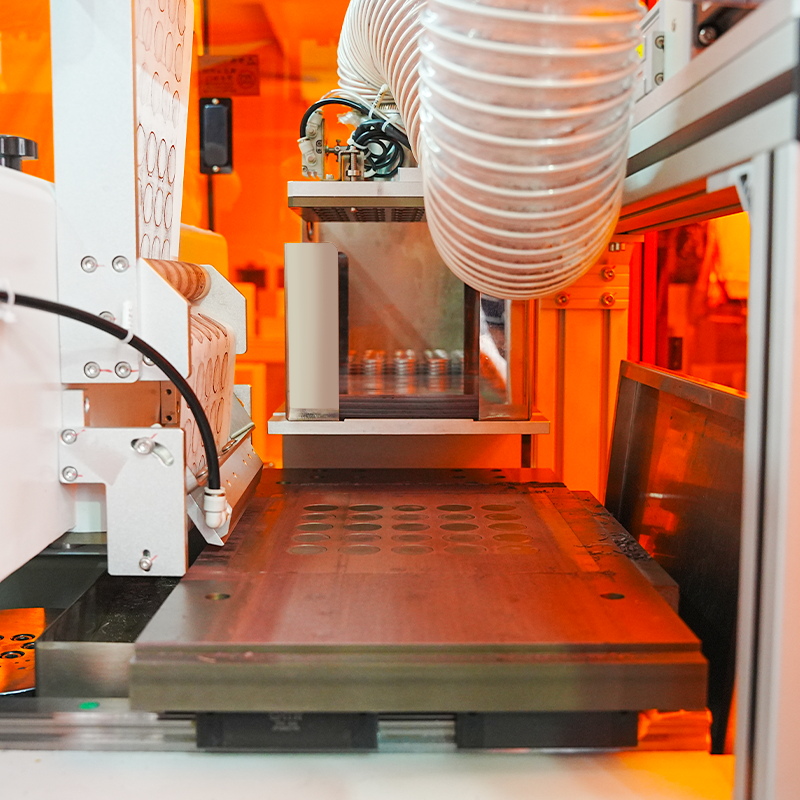

·Main Powder Pressing Assembly: The core pressure-application unit, forming the powder to specified hardness and density parameters.
·Fabric Winding Assembly: Automatically cycles the anti-stick pressing fabric to keep the press head clean and prevent cross-contamination.
·Automatic Discharge Assembly: Automatically removes the compacted finished aluminum pans from the mold and transfers them to the collection discharge end.

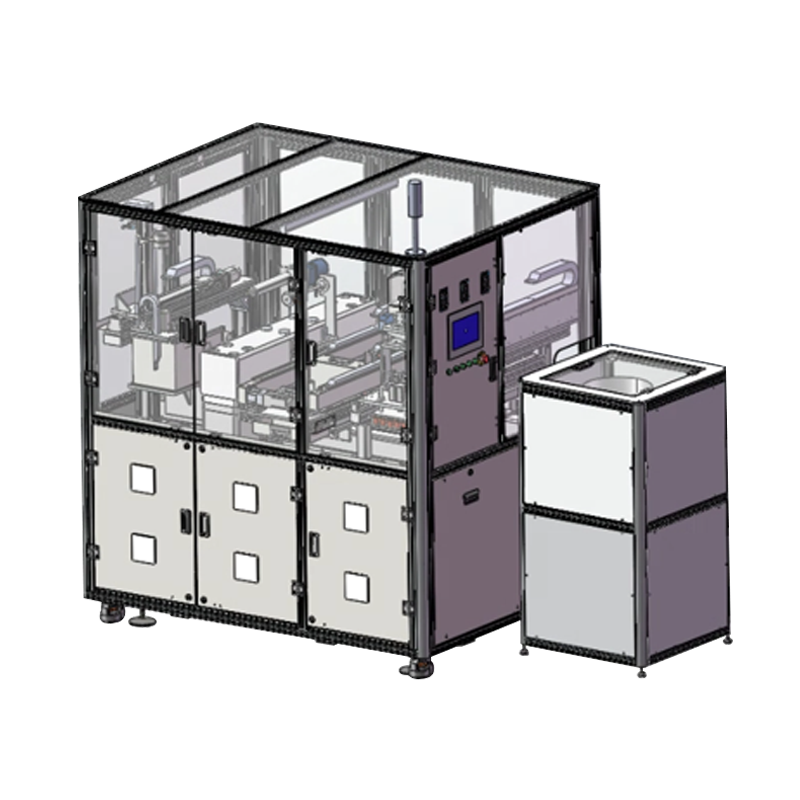

·Main Frame Assembly: An industrial-grade, high-rigidity structural frame that minimizes mechanical resonance and maintains long-term operating precision.
Application Scenarios
·Cosmetic OEM/ODM Manufacturing Plants: Tailored for high-volume contract manufacturing orders across diverse powder cosmetic categories.
·Pressed Powder Production Lines: Specialized in the standardized solid-shaping production of facial pressed compact powders.
·Multi-Color Eyeshadow & Blush Mass Production: Applicable for high-speed pressing of multi-cavity eyeshadow palettes and blushes with standardized dimensions.
Frequently Asked Questions (FAQs)
-
Q: Pan feeding jamming or misalignment·Root Cause: Improper tuning of vibratory feeder or deformed aluminum pans.
·Solutions: Readjust the track clearance of the vibratory bowl; inspect and reject deformed pans. -
Q: Surface powder flaking or delamination·Root Cause: Insufficient pre-pressing venting or incorrect main press pressure setting.
· Solutions: Increase the pre-pressing stroke to extend air venting time; recalibrate main press pressure parameters. -
Q: Fabric tearing or expiration·Root Cause: Excessive tension in the fabric winding assembly or uneven stepping distance.
·Solutions: Check the damping of the fabric shaft, reduce tension settings, and clean the fabric sensor.
-
Q: How long will it take to receive a response after the inquiry?
We value every inquiry. We will reply within 12 hours after receiving the inquiry.
-
Q: How long will it take for the device to respond and solve the problem?
After receiving the fault notification from Party A, we can provide a video response within 2 hours to troubleshoot the issue.
