Fully Automatic Cosmetic Aluminum Pan Loading and Feeding Machine

Fully Automatic Cosmetic Aluminum Pan Loading and Feeding Machine

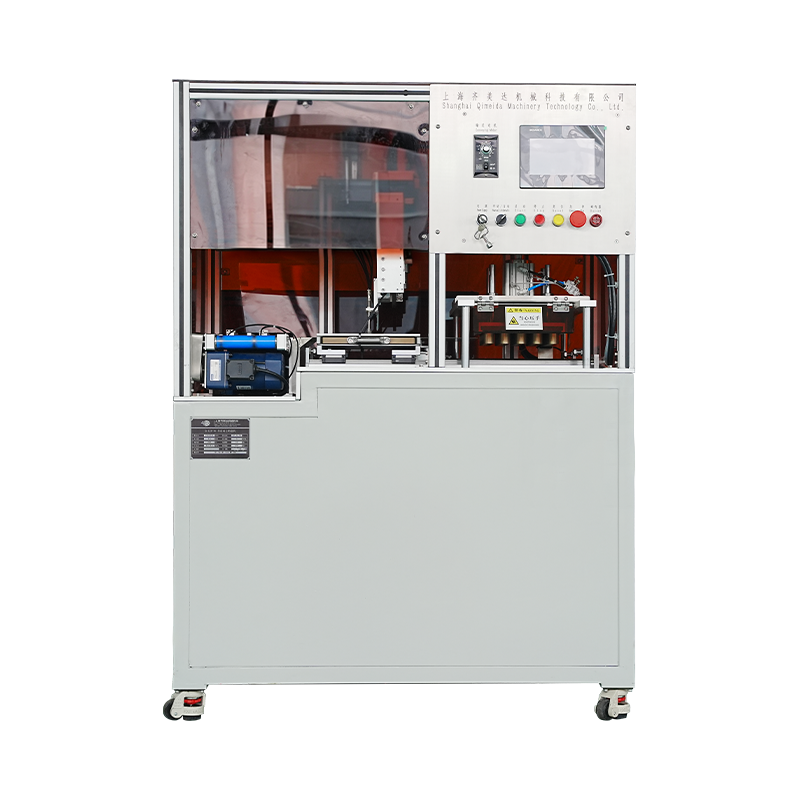

Shanghai Qimeida Machinery Technology Co., Ltd. designs and builds the Fully Automatic Cosmetic Aluminum Pan Loading and Feeding Machine as a dedicated upstream module for pressed powder, blush, and eyeshadow production. This machine replaces manual pan sorting and placement with a vibratory bowl feeder, a robotic gripping system, and a pre-pressing station, all synchronized by PLC logic. As a China-based manufacturer and supplier, we engineer this unit to integrate directly with downstream filling and pressing equipment, reducing labor and improving line consistency.

Our equipment is built for cosmetic OEM/ODM facilities that need high-volume, hygienic pan handling. The machine handles bulk aluminum pans (godets), aligns them directionally, and loads them into multi-cavity molds with a structural yield rate of 99%. It is available in configurations up to 49 cavities, operating at 3–6 cycles per minute, effectively replacing about three manual operators per shift.

Core Components and Operation

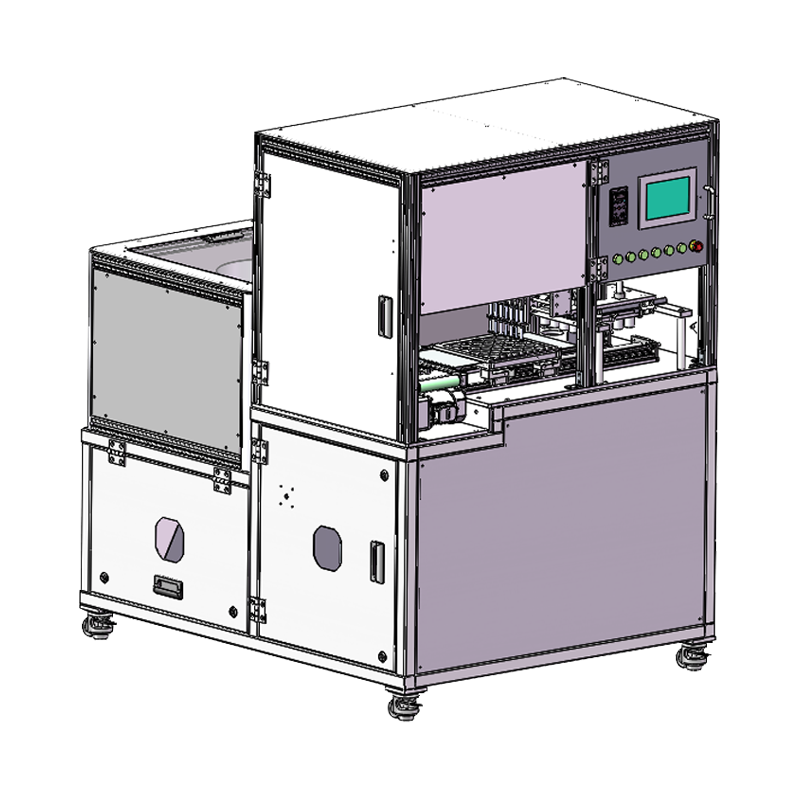

The machine is composed of standardized modular assemblies, each controlled by the central PLC to ensure precise sequencing:

• Vibratory Bowl Feeder Assembly: Sorts and aligns bulk aluminum pans onto a feeding track, using internal gates and clearance tuning to prevent jams.

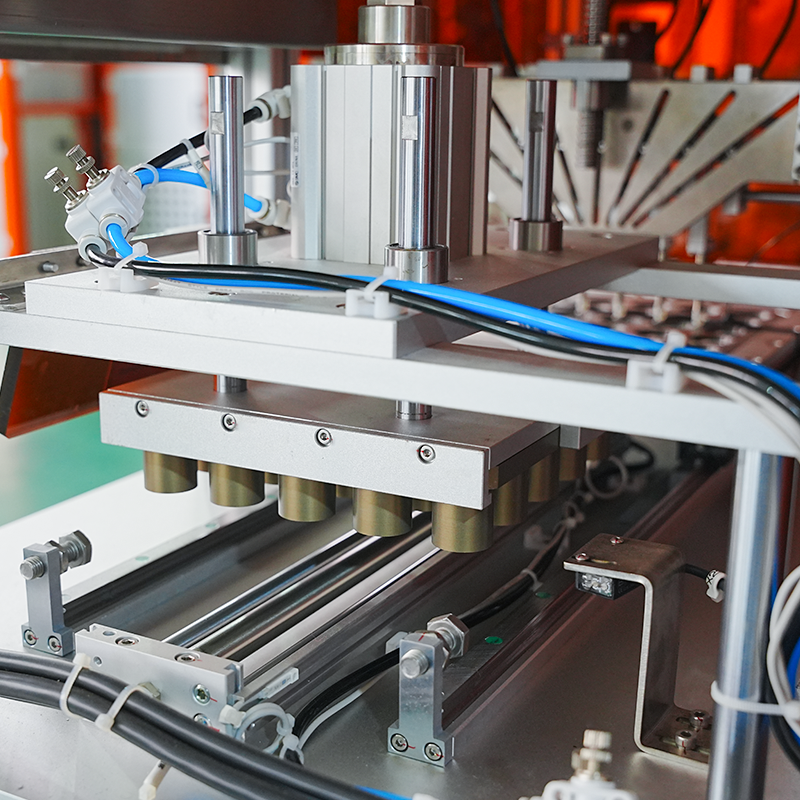

• Automatic Pan Loading Assembly: A pneumatic and robotic gripping unit picks aligned pans and places them into mold cavities with vacuum suction.
• Pre-Pressing Assembly: Levels and pre-clamps pans after placement, ensuring they are locked and flat before filling.
• Main Frame Assembly: High-rigidity industrial frame that absorbs vibration and maintains geometric precision during high-frequency operation.

Applications and Integration

This machine is designed for the front end of compact powder lines. Typical applications include:

• Feeding empty pans into automatic powder filling and clearing units.
• Supplying multi-cavity molds for eyeshadow palettes or mass-produced powder compacts.
• Reducing manual contact with packaging components to meet sanitary standards in high-volume OEM/ODM plants.

The unit features standardized signal interlocking interfaces, enabling direct physical and data synchronization with downstream powder pressing machines and filling equipment. We configure the PLC logic to match your existing line architecture, ensuring seamless handoff.

Specifications and Performance

These figures are typical for standard configurations. We adjust mold cavity count and cycle speed based on your product dimensions and target throughput.

Configuration Options

We offer several configuration choices to match your production needs:

• Mold Design: Custom cavity layouts for round, square, or rectangular pans, including multi-cavity palettes.
• Feeder Type: Vibratory bowl feeder with adjustable track clearance for different pan gauges.
• Gripping System: Vacuum or mechanical grippers, depending on pan material and surface finish.

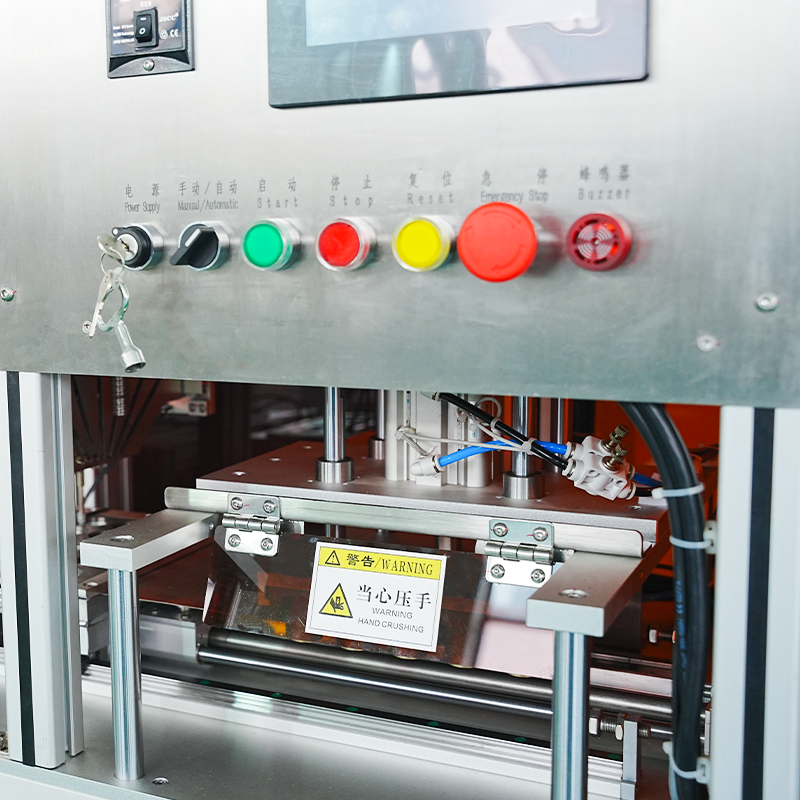

• Control Interface: PLC with HMI, supporting integration with existing line controllers.

Quality Assurance and Testing

Each machine undergoes factory testing to verify cycle time, alignment accuracy, and sensor synchronization. We check vacuum pressure, track clearance, and PLC communication with downstream equipment. Our quality control process ensures that the machine meets the specified yield rate before shipment.

Installation, Maintenance, and Support

We provide installation guidance and technical training to your operators. The machine is designed for easy access to the vibratory bowl, gripper nozzles, and sensors for routine cleaning and adjustment. We offer remote video support for troubleshooting, with a response within 2 hours of a fault notification.

Common maintenance tasks include cleaning suction nozzles, checking pneumatic pressure, and recalibrating sensor positions. We supply spare parts and provide documentation for preventive maintenance schedules.

Information We Use to Configure Your Solution

To prepare a precise quotation and configuration, we need the following from your team:

• Pan dimensions (diameter, depth, material thickness) and sample if available.
• Target production rate (cycles per minute or pans per hour).
• Mold cavity layout and number of cavities required.
• Details of downstream filling and pressing equipment for interface design.
• Plant utility specifications (air pressure, voltage, available floor space).

FAQs

Q: What causes pan feeding jams, and how are they resolved?

A: Jams typically occur due to incorrect track clearance or deformed pans. We adjust the vibratory bowl's selection gates and track clearance, and recommend inspecting incoming pans to reject any that are bent.

Q: How do we handle mis-picking by the robotic gripper?

A: Mis-picking is often due to low pneumatic pressure or clogged suction nozzles. Check the air supply, clean or replace nozzles, and ensure pans are not nested. We provide access to these components for quick maintenance.

Q: Can this machine integrate with our existing powder pressing line?

A: Yes, the machine has standardized signal interlocking interfaces. We can synchronize it with your current filling and pressing equipment by configuring the PLC communication parameters.

Q: What is your response time for technical support?

A: We reply to inquiries within 12 hours. For fault troubleshooting, we provide a video response within 2 hours of receiving your notification.
