100L Horizontal Trough Mixer Machine for Cosmetic Wet Powder

100L Horizontal Trough Mixer Machine for Cosmetic Wet Powder

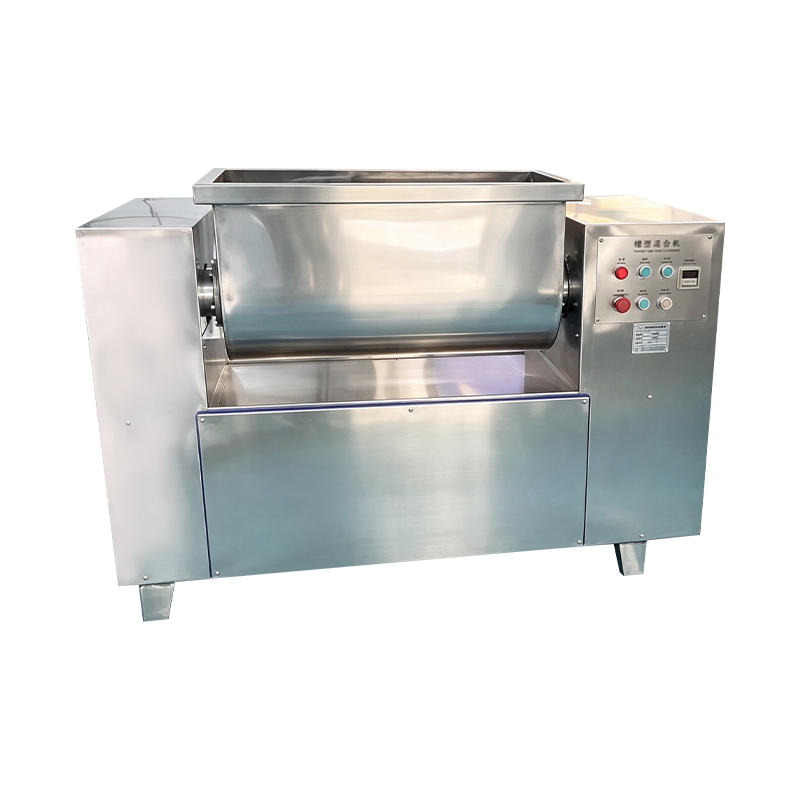

Shanghai Qimeida Machinery Technology Co., Ltd. designs and builds this 100L horizontal trough mixer as a dedicated wet-mixing solution for cosmetic powders and paste-like raw materials. As a Custom 100L Horizontal Trough Mixer Machine for Cosmetic Wet Powder manufacturer, we focus on cleanability, batch consistency, and safe discharge for color cosmetic production.

The machine body is fabricated from SUS304 stainless steel, with a 100L hopper capacity and a single-batch mixing range of 50–70 kg. It is suited for pre-mixing wet pressed powder, liquid foundation base, and paste-like cosmetic formulations before downstream processing.

Product Specifications

Application Fit and Process Integration

This mixer is intended for wet powder and paste-like raw materials in cosmetic manufacturing. Typical applications include pre-mixing for liquid foundation, wet pressed powder, and paste-like cosmetics. The spiral paddle design promotes uniform wetting and dispersion of pigments and binders, reducing agglomerates before downstream milling or pressing.

For a complete powder processing line, this mixer can be paired with our Industrial Superfine Cosmetic Powder Pulverizer Machine with Screw Feeder for size reduction after drying, or with our Fully Automatic Cosmetic Powder Pressing Machine for compacting. We help you integrate the mixer with existing conveyors, granulators, or dryers based on your process flow.

Design and Construction Features

• SUS304 stainless steel body – resists corrosion from wet formulations and meets cosmetic cleanability standards.
• Spiral stirring paddle – provides gentle yet thorough mixing for shear-sensitive wet powders.
• Electric side-tilting discharge – reduces manual handling, lowers contamination risk, and speeds batch turnover.
• Automatic timing stop – ensures consistent mixing cycles and prevents over-mixing.
• Compact footprint – 1500×700×1000 mm fits typical pilot or production areas.

Quality Assurance and Testing

We implement strict quality control during fabrication and assembly. Each machine undergoes functional testing of the stirring drive, timing control, and tilting mechanism before shipment. Material contact surfaces are finished to facilitate cleaning and prevent product retention.

Our factory in Shanghai supports customized development based on your drawings or samples. We can adjust the paddle geometry, add safety interlocks, or modify the discharge height to match your downstream equipment.

Installation, Operation, and Maintenance

The mixer requires a 3-phase 380V power supply with reliable grounding. During installation, ensure the unit is level and the tilting mechanism has clearance for discharge. Before operation, verify that the stirring paddle is securely fastened. Never place hands or tools inside the hopper while the machine is running.

After each batch, clean the hopper, paddle, and all contact parts to avoid material residue. Periodically inspect the electric tilting mechanism and electrical components. We provide a detailed manual and offer remote video support for troubleshooting—typically responding within 2 hours of a fault notification.

Information We Use to Configure Your Solution

To prepare a precise quotation and configuration, we need the following project data:

• Target formulation type (e.g., wet pressed powder, foundation paste) and viscosity
• Required batch size and daily production volume
• Available electrical supply (voltage, phase, frequency)
• Desired automation level (manual, semi-automatic, or integrated with PLC)
• Any specific material certifications or surface finish requirements
• Facility layout and space constraints

Frequently Asked Questions

Q: What is the typical mixing time for a batch?

A: Mixing time depends on the formulation and desired homogeneity. The automatic timer allows you to set the cycle; typical wet powder mixing ranges from 5 to 15 minutes. We recommend conducting trials with your specific material to optimize the time.

Q: Can the mixer handle abrasive pigments or high-viscosity pastes?

A: The spiral paddle is designed for wet powders and paste-like materials. For highly abrasive or extremely viscous formulations, we can recommend paddle material upgrades or a different mixer configuration. Share your formulation details for a tailored assessment.

Q: Is the discharge system safe for operators?

A: Yes, the electric side-tilting discharge minimizes manual lifting and reduces powder dust exposure. The machine includes safety precautions such as ensuring hands are clear during tilting. We can add interlocks if required.

Q: What after-sales support do you provide?

A: We offer installation guidance, technical training, and remote assistance. For troubleshooting, we provide video response within 2 hours of your fault notification. Spare parts are available for quick replacement.

Q: Can you customize the mixer for our specific production line?

A: Yes, our R&D team supports customization based on your drawings or samples. We can adjust hopper volume, paddle design, discharge height, and control interfaces to integrate with your existing equipment.
