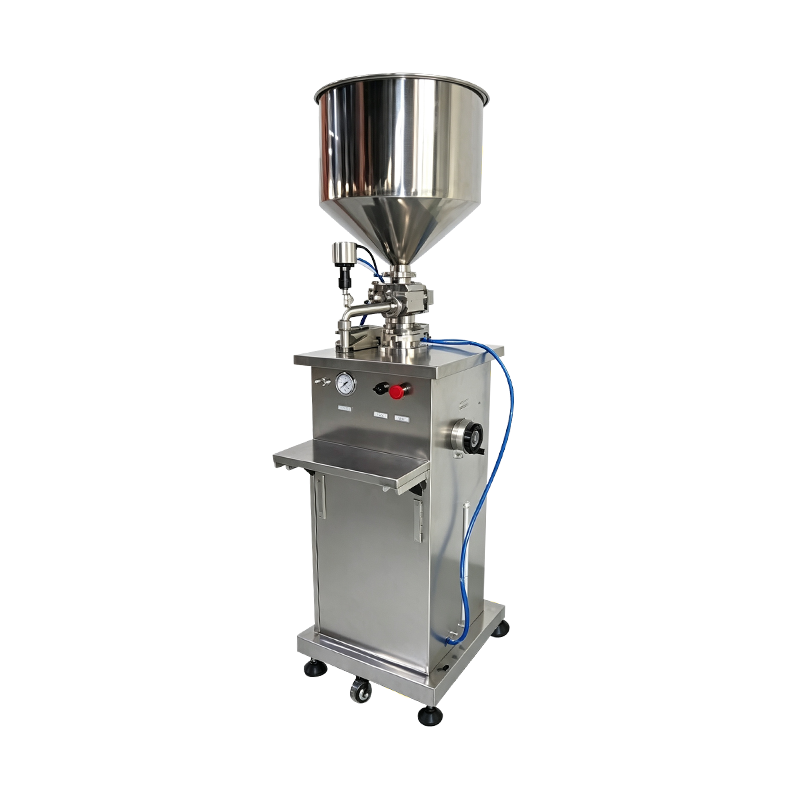

Full Pneumatic Single-Head Piston Filling Machine for Cosmetic Cream

Full Pneumatic Single-Head Piston Filling Machine for Cosmetic Cream

Shanghai Qimeida Machinery Technology Co., Ltd. designs and builds this Full Pneumatic Single-Head Piston Filling Machine for Cosmetic Cream manufacturer for laboratories, small-batch production lines, and workshops where electricity is unavailable or explosion protection is mandatory. The machine operates entirely on compressed air, eliminating electrical ignition sources and simplifying compliance in hazardous areas.

We supply this unit as a standalone filling station or as part of a semi-automatic line, integrating with your existing conveyors and operators. Our engineering team configures the hopper, suction tube, and filling cylinder to match your product's viscosity and container type, ensuring accurate, repeatable fills from the first batch.

Why Choose a Fully Pneumatic Filling Solution?

Cosmetic creams, lotions, and pastes often contain alcohols, solvents, or volatile compounds that create explosive atmospheres. This machine uses no electrical components, making it inherently safe for such environments. It also suits remote production areas without reliable power, where compressed air is already available.

• Explosion-proof operation: No electric motors, sensors, or wiring; only pneumatic actuators and controls.
• Portable design: Equipped with casters, the 45 kg unit moves easily between workstations.
• Hygienic construction: SUS304 stainless steel for the body, hopper, and all product-contact parts, with a brushed finish that resists corrosion and is easy to clean.
• Dual feed modes: Use the hopper for high-volume filling or switch to the suction tube for direct product pickup from drums or tanks.

Technical Specifications and Configuration

Application Fit for Cosmetic Creams and Pastes

This machine is designed for paste and fluid cosmetics, including lipsticks, lip glosses, creams, lotions, hand creams, and similar products. It handles viscosities from thin lotions to thick creams, provided the product flows under gravity or suction. Typical applications include:

• Laboratory sampling and R&D batches where quick changeover is essential.
• Small-batch production for niche or custom cosmetic lines.
• Power-free workshops in developing regions or temporary setups.
• Explosion-proof areas in fragrance, aerosol, or alcohol-based product facilities.

We recommend testing your actual product with our machine to confirm fill accuracy and cycle time. Our team can provide a sample test report based on your material's viscosity and container dimensions.

Operation and Adjustment

The operator controls the filling cycle with a pneumatic foot pedal or hand valve, leaving both hands free to position containers. Filling volume is adjusted by changing the piston stroke length—a simple mechanical adjustment that does not require special tools. We recommend performing test fills after each adjustment to verify volume before starting a production run.

For continuous high-volume filling, use the hopper mode and keep it topped up. For products supplied in drums, switch to the suction tube mode to draw material directly, minimizing product transfer and contamination risk.

Installation, Utilities, and Safety

Installation is straightforward: connect the machine to a clean, dry compressed air supply (typically 5–7 bar) using a quick-connect fitting. No electrical connection is needed. The unit arrives fully assembled and tested; you only need to level it and connect the air line.

Safety precautions are minimal but important:

• Check air line connections for leaks before each shift.
• Keep the hopper free of foreign objects to avoid clogging the filling line.
• Clean the hopper and suction tube regularly to prevent residue buildup that affects accuracy.
• Ensure operators are trained on the pneumatic controls and emergency stop procedures.

Quality Assurance and Testing

As a China-based factory, we implement quality control throughout manufacturing. Each machine undergoes a functional test with water or a representative product before shipment. We verify filling volume accuracy, cycle time, and leak-free operation. Our quality process includes material certification for SUS304 parts and a final inspection report.

We also provide documentation including an operation manual, pneumatic diagram, and maintenance schedule. For international shipments, we use export-grade packaging to prevent damage during transit.

Maintenance and Spare Parts

The all-pneumatic design has few moving parts, reducing failure points. Routine maintenance involves:

• Lubricating the pneumatic cylinder and moving joints monthly.
• Inspecting air hoses and fittings for wear.
• Replacing seals and O-rings annually or as needed.

We stock common spare parts such as seals, cylinder kits, and valves, and can ship them quickly. Our technical support team provides remote video assistance within 2 hours of a fault notification, helping you resolve issues with minimal downtime.

Information We Use to Configure Your Solution

To prepare an accurate quotation and configuration, we need the following details from you:

• Product name and viscosity range (cP or mPa·s).
• Filling volume per container (ml or g) and required accuracy.
• Container type, neck diameter, and filling depth.
• Production rate target (containers per minute or per hour).
• Available compressed air pressure and flow rate.
• Whether you need hopper, suction tube, or both.
• Any special requirements for cleanroom, explosion-proof, or food-grade compliance.

With this information, we can confirm the standard model or propose modifications such as a larger hopper, different cylinder size, or custom nozzle to suit your containers.

Related Equipment for Complete Lines

This filling machine works well with other Qimeida equipment for a complete cosmetic production line. For powder products, consider our Fully Automatic Cosmetic Powder Pressing Machine or Semi-automatic Auger Powder Filling Machine for Cosmetic Loose Powder. For mixing and preparation, our 50L High Shear Powder Mixer Machine with Oil Spraying System ensures homogeneous blends before filling.

FAQs

Q: Can this machine handle very thick creams?

Yes, the piston filling mechanism is designed for pastes and creams. However, the maximum viscosity depends on the product's flow characteristics and the suction tube diameter. We recommend testing with your actual product to confirm performance.

Q: What air pressure is required?

The machine operates on standard workshop compressed air, typically 5–7 bar. Ensure your supply provides sufficient flow for the filling cycle; we can specify the exact consumption based on your cycle rate.

Q: How do I change the filling volume?

Adjust the piston stroke length via a mechanical stop. Loosen the locking knob, set the desired volume, and retighten. Perform a test fill to verify accuracy.

Q: Is the machine suitable for cleanroom use?

The SUS304 stainless steel construction and brushed finish are easy to clean and resist contamination. However, cleanroom classification depends on your facility's standards. We can provide additional surface treatment options if needed.

Q: What after-sales support do you offer?

We provide installation guidance via video, technical training for your operators, and remote troubleshooting. Spare parts are available for fast shipment. Our team responds to inquiries within 12 hours and offers video support within 2 hours of a fault report.
