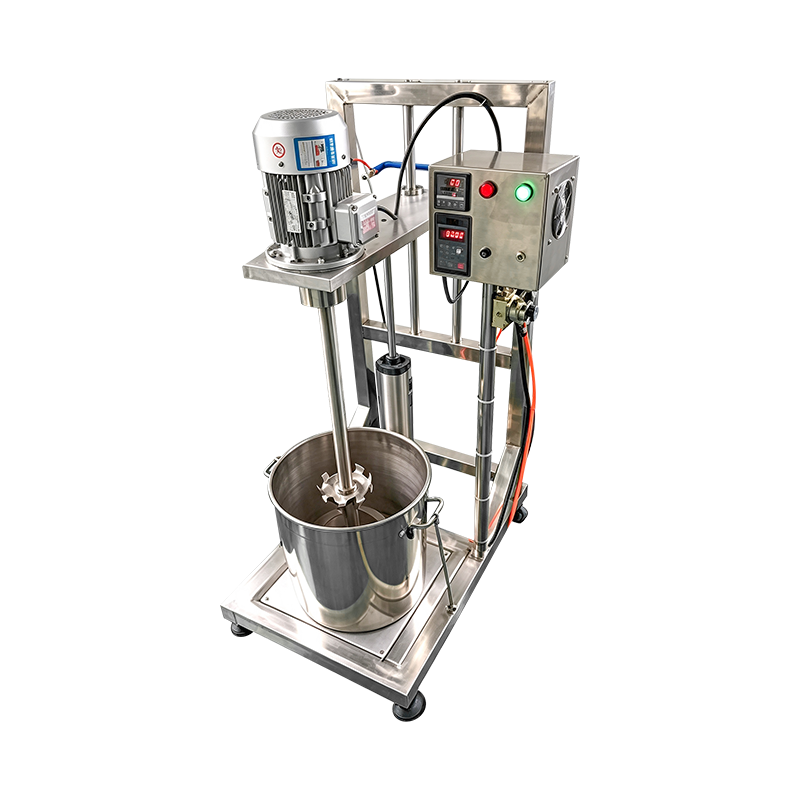

Pneumatic Lifting High-Speed Disperser with Heating for Cosmetic Pigment

Pneumatic Lifting High-Speed Disperser with Heating for Cosmetic Pigment

Shanghai Qimeida Machinery Technology Co., Ltd. designs and manufactures this compact disperser for cosmetic laboratories and small-batch production lines. As a dedicated Pneumatic Lifting High-Speed Disperser with Heating for Cosmetic Pigment manufacturer, we combine heating, dispersion, and stirring in one stainless-steel unit to support R&D, pilot batches, and small-scale manufacturing of creams, lotions, gels, and lipstick bases.

Our factory in Shanghai builds each machine with SUS304 stainless steel for the main body and all material-contact parts, with a brushed finish that meets cosmetic hygiene expectations. The pneumatic lifting system lets operators adjust stirrer height to match different container sizes, while the bottom aluminum plate heating and variable-speed stirring motor provide uniform temperature and dispersion control.

Product Specifications

Application Fit

This disperser is engineered for cosmetic pigment processing where controlled heating and uniform dispersion are critical. Typical applications include:

• Laboratory R&D for new formulations
• Pilot production of creams, lotions, and gels
• Small-batch manufacturing of lipstick bases and pigment dispersions

The compact footprint (700×700×1100 mm) fits benchtop or limited floor space, while the 5.5 kW total power supports batch sizes suitable for testing and small-scale output. The pneumatic lift allows quick container changes, reducing downtime between batches.

Configuration and Customization

We offer this machine as a standard configuration, but we can adapt it to your process. Our engineering team can adjust the stirrer design, heating control range, or add safety interlocks based on your specific material viscosity and temperature requirements. For larger production needs, we also supply complementary equipment such as wax melting tanks and three roll mills to build a complete processing line.

Quality and Compliance

All material-contact parts are SUS304 stainless steel, brushed to a smooth finish that resists corrosion and is easy to clean. We test each unit before shipment, checking pneumatic line integrity, heating accuracy, and motor speed control. The machine operates on standard single-phase power, simplifying installation in most laboratories.

Installation and Operation

Installation requires a clean, level surface and access to a compressed air supply for the pneumatic lifting system. Connect the 220V power, verify air line connections for leaks, and the machine is ready. Our team provides an operation manual and can offer remote video support for troubleshooting.

Maintenance and Support

Routine maintenance includes checking pneumatic fittings, cleaning the heating plate after cooldown, and inspecting the stirring shaft for wear. We supply spare parts and offer after-sales technical support. For any fault, we respond with a video diagnosis within 2 hours of notification.

Information We Use to Configure Your Solution

To prepare an accurate quotation and configuration, please provide:

• Material type and viscosity range
• Batch size and desired processing temperature
• Available power supply and compressed air pressure
• Container dimensions or desired stirrer clearance
• Any specific safety or automation requirements

FAQs

What is the maximum batch size this disperser can handle?

The machine is designed for laboratory and small-batch production. The actual capacity depends on material viscosity and container size, but typical batches range from 5 to 30 liters. We recommend confirming your target batch volume so we can advise on stirrer geometry and heating power.

Can the heating temperature be precisely controlled?

Yes, the bottom aluminum plate heating system has a temperature control range of 0–140°C, allowing you to maintain a constant temperature for heat-sensitive cosmetic materials. The controller provides stable regulation within this range.

Is the machine suitable for water-based and oil-based formulations?

Yes, the SUS304 stainless steel construction is compatible with most cosmetic formulations, including water-based creams, oil-based lotions, and pigment dispersions. For highly abrasive or corrosive materials, we can discuss alternative materials or coatings.

What after-sales support do you provide?

We offer installation guidance, technical training, and remote assistance. If a fault occurs, we provide a video response within 2 hours to help diagnose and resolve the issue. Spare parts are available for quick replacement.
